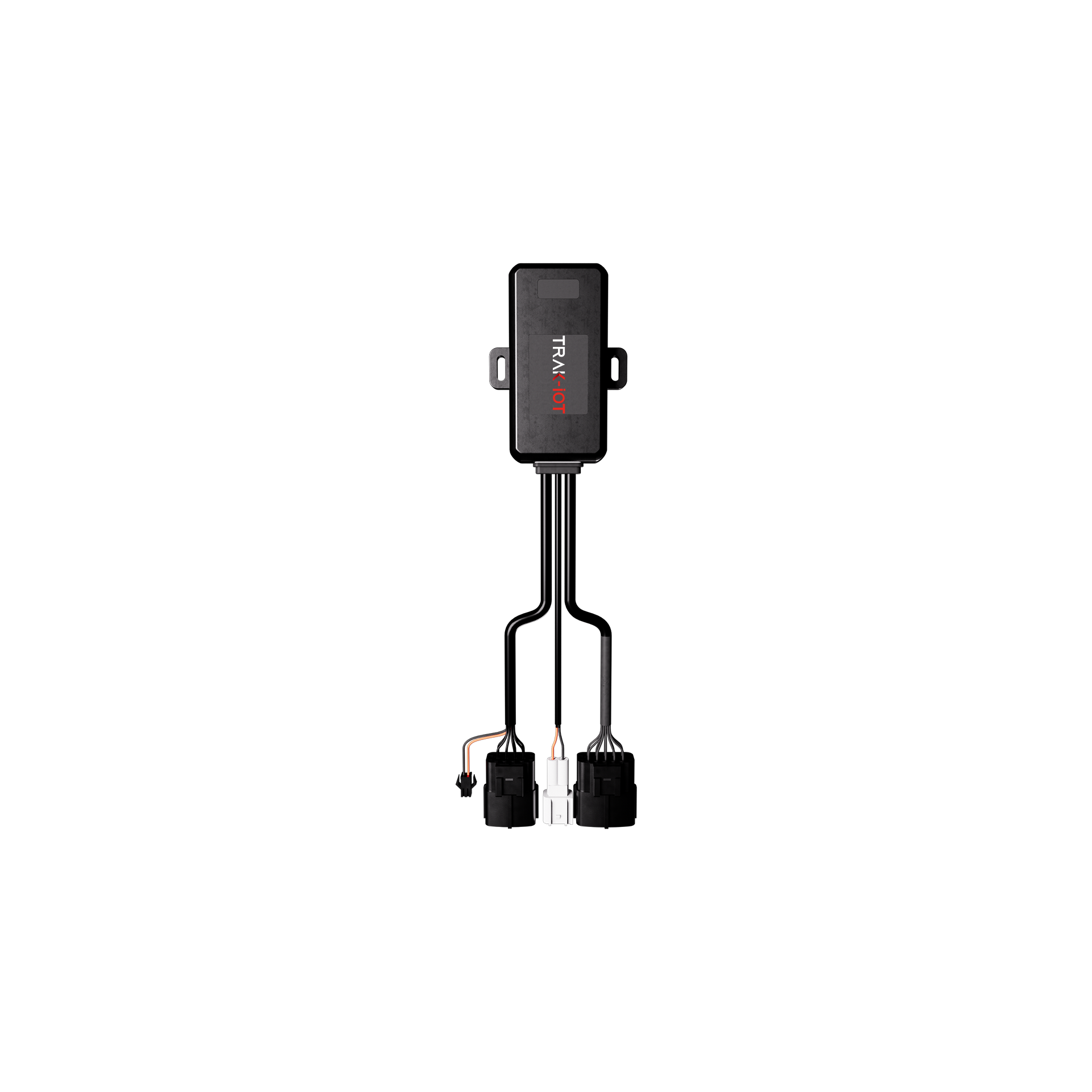

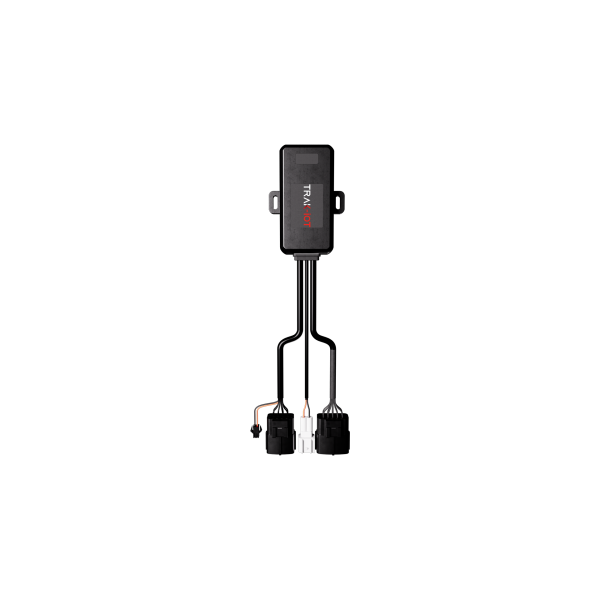

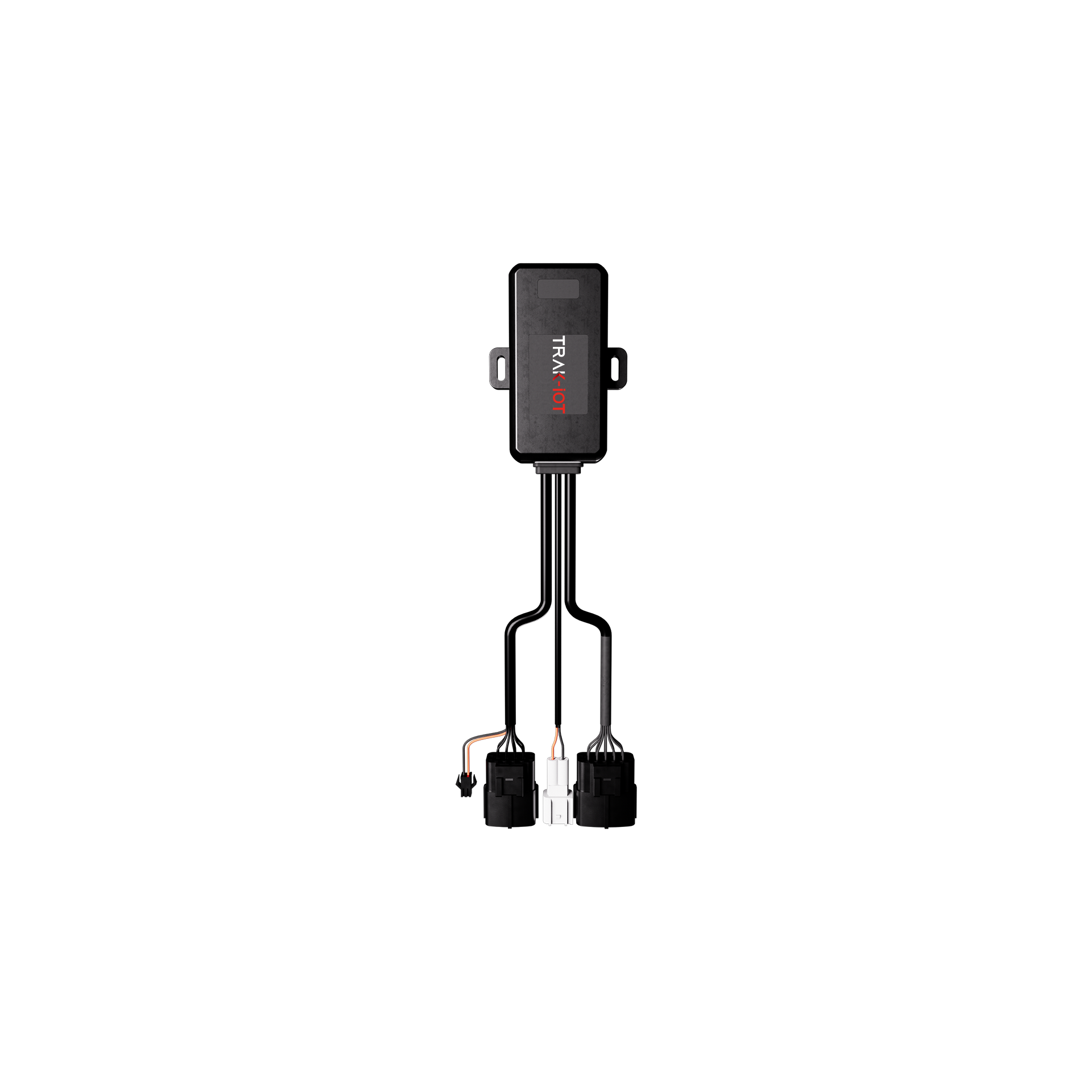

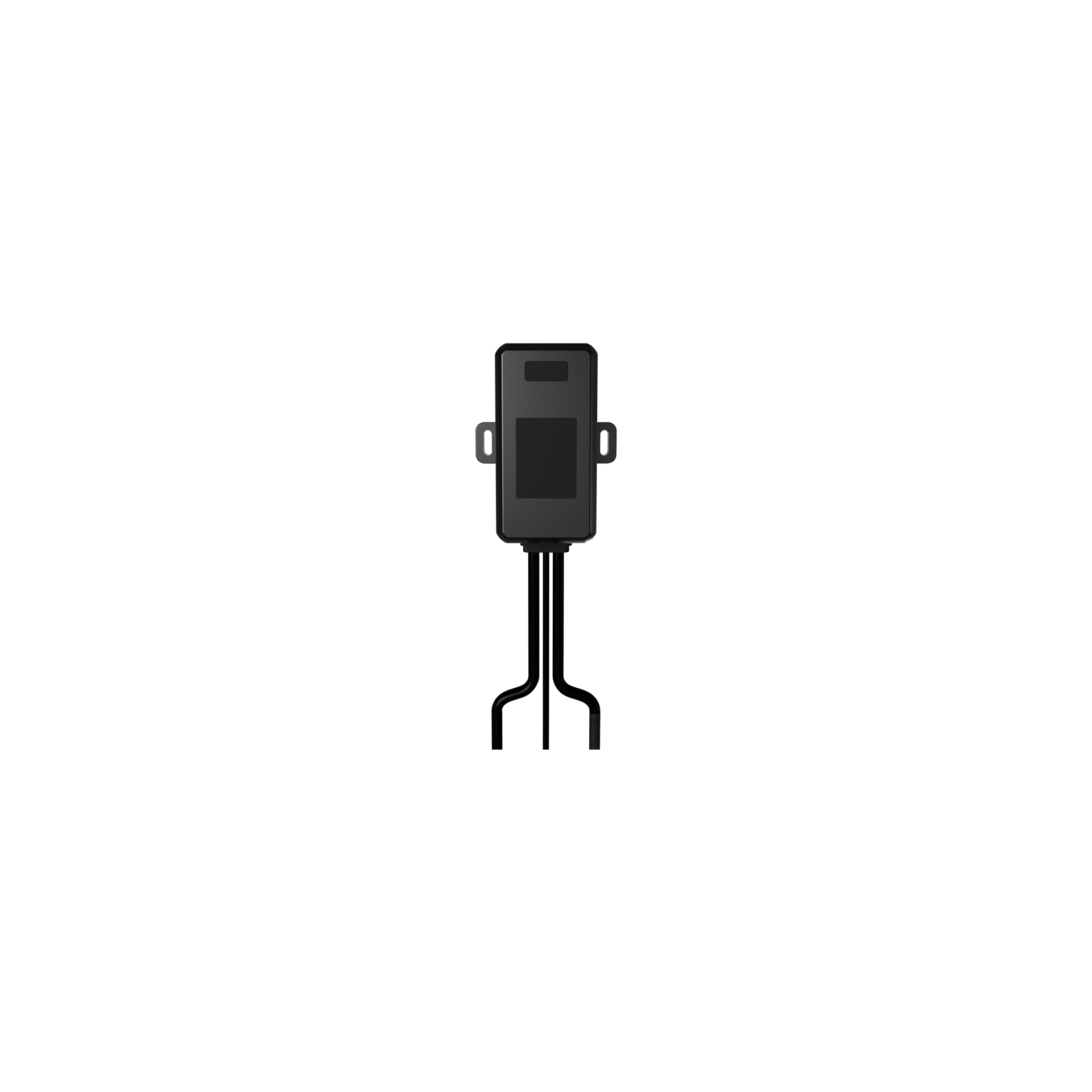

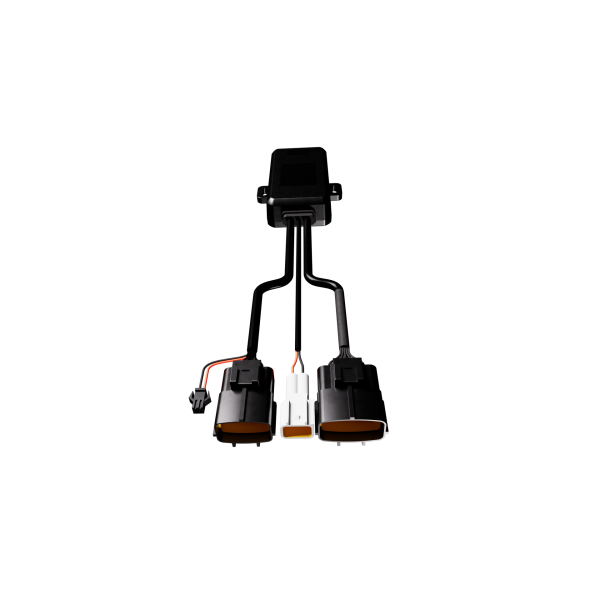

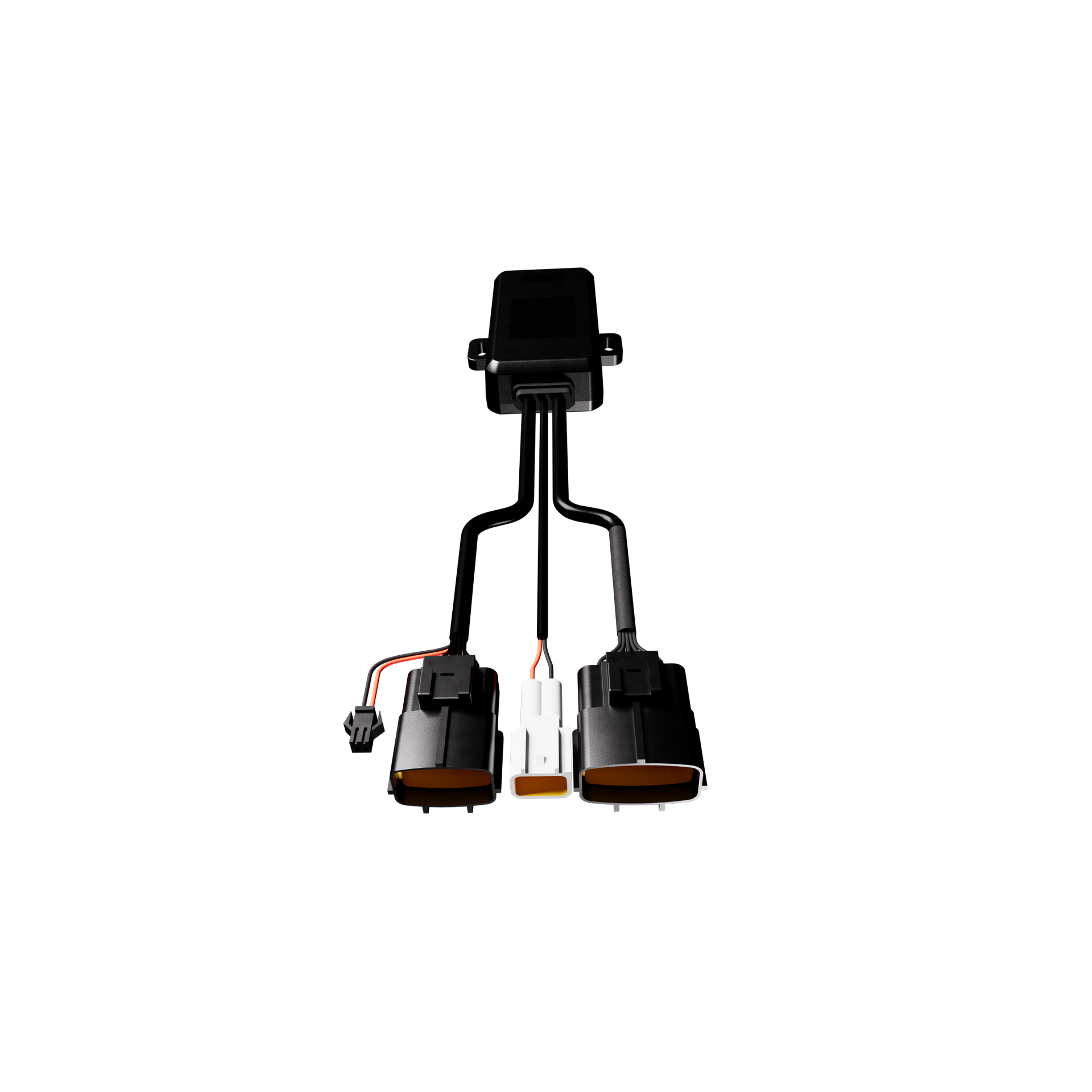

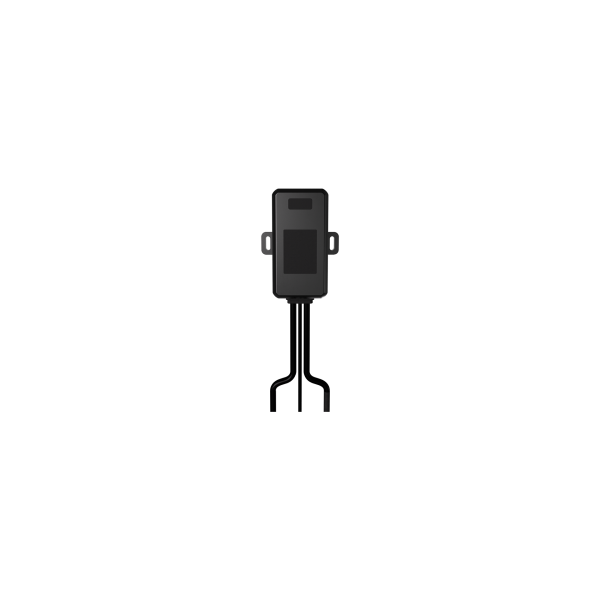

TC10
TC10 is a comprehensive wired positioning terminal that offers a wide range of features. In addition to basic functions like real-time positioning, driving behavior analysis, dismantling alarm, ACC detection, and remote locking, it also provides multiple interfaces for connecting external sensors. And it also supports TTS voice broadcast and Bluetooth module. With its powerful capabilities, TC10 can meet various regulatory requirements and application scenarios.
CELLULAR NETWORK
TC10-AS:
LTE FDD: Band 1/3/5/8
LTE TDD: Band 34/38/39/40/41
GSM: 900/1800MHz
TC10-EU:
LTE FDD: Band 1/3/5/7/8/20/28
GSM: 850/900/1800MHz/1900
TC10-LA:
LTE FDD: Band 2/3/4/5/7/8/28/66
GSM: 850/900/1800MHz/1900
Internal
POSITIONING
BDS/GPS/GLONASS
Satellite positioning <10m (2DRMS)
Internal
PHYSICAL
102mm*52.5mm*25mm
DC9V-36V
< 50mA@12V (standby current < 5mA)
145mAh
IP65
Built-in Micro SIM
Green (CELL)
Blue (GNSS)
INTERFACES
1
1
1
1
Optional, 485/232/TTL one of three options for peripherals such as cameras or temperature and humidity sensors.
3 (For sensors such as door status sensor or air conditioner switch, etc.)
1 (For buzzer, limit switch, etc)
1
1
1
1 (Supply power to peripherals)
RELIABILITIES
–20°C ~ + 70°C
–40°C ~ + 85°C
