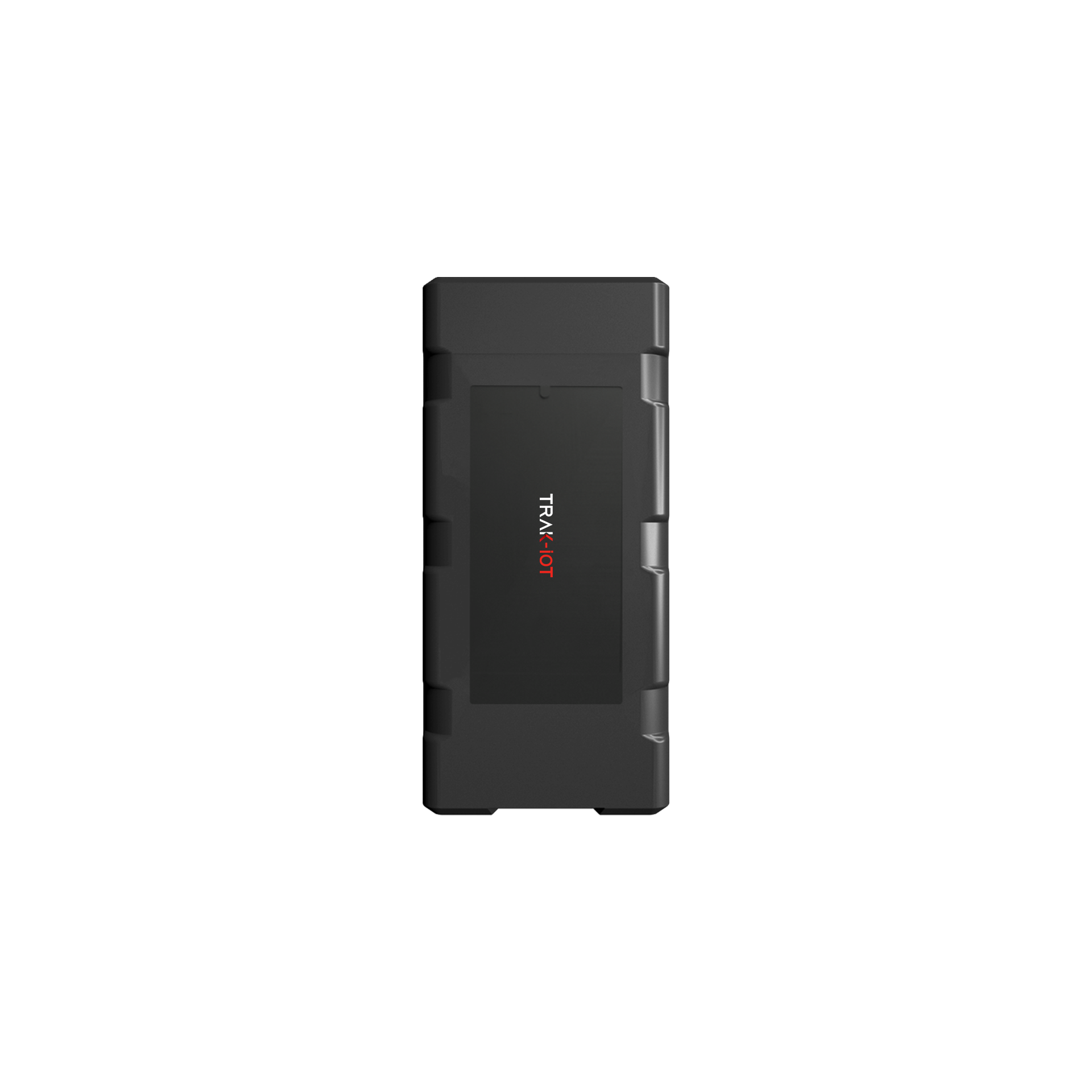

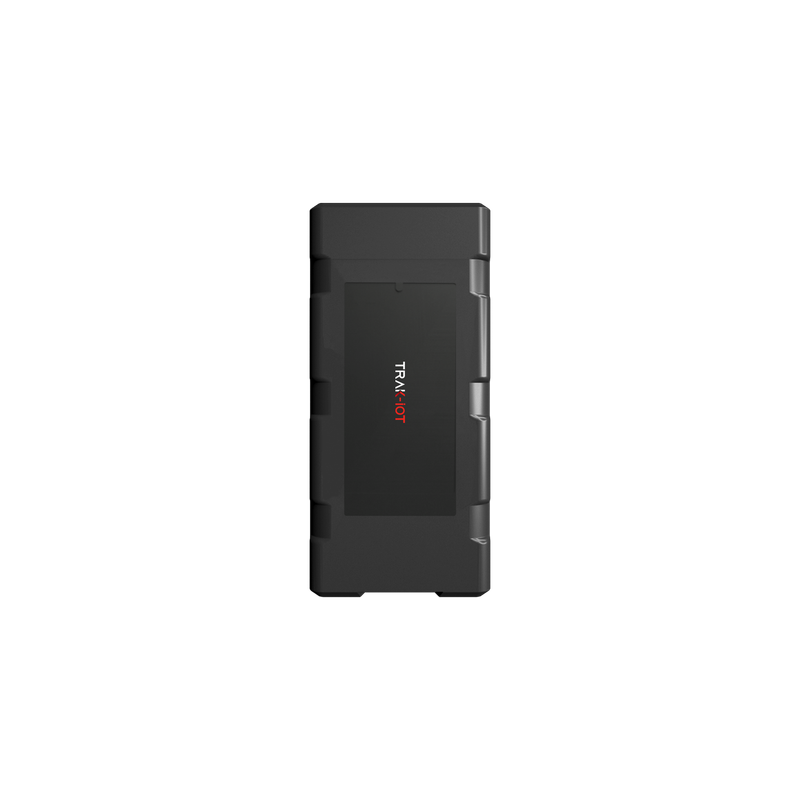

TC04CS004 Versatile Vehicle Tracker With 9 Pins

Cat M1:

LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/

B18/B19/B20/B25/B26*/B27/B28/B66/B85

Cat NB2:

LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/

B19/B20/B25/B26*/ B28/B66/B71/B85

EGPRS:

850/900/1800/1900MHz

Cat M1: Max. 588 Kbps(DL) /1119 Kbps/(UL)

Cat NB2: Max. 127 Kbps(DL) /158.5 Kbps (UL)

GPRS: Max. 107 Kbps(DL) /85.6 Kbps(UL)

EDGE: Max. 296 Kbps(DL) /236.8 Kbps(UL)

Internal

GPS/GLONASS/BeiDou/Galileo

72 channels

-167dBm (Tracking)

-160dBm (Reacquisition)

-148dBm (Cold start)

-157dBm (Hot start)

2.5m (CEP)

26S (Cold start)

1S (Hot start)

2S (Aided starts)

Internal

-20℃ ～+70℃

-40℃ ～+85°C

-40℃ ～+85°C

5% to 95% non-condensing

94.3*43.5*19.5mm

103g

IP67

Rechargeable 600mAh 3.7V Li-polymer

9-36 VDC with overvoltage protection

Active mode: 29.4mA @12V

Sleep mode: 5.3mA @12V

Deep sleep mode: 2.9mA @12V

1

2

1

1

3-axis accelerometer

3 (Power, Cell, GNSS)
