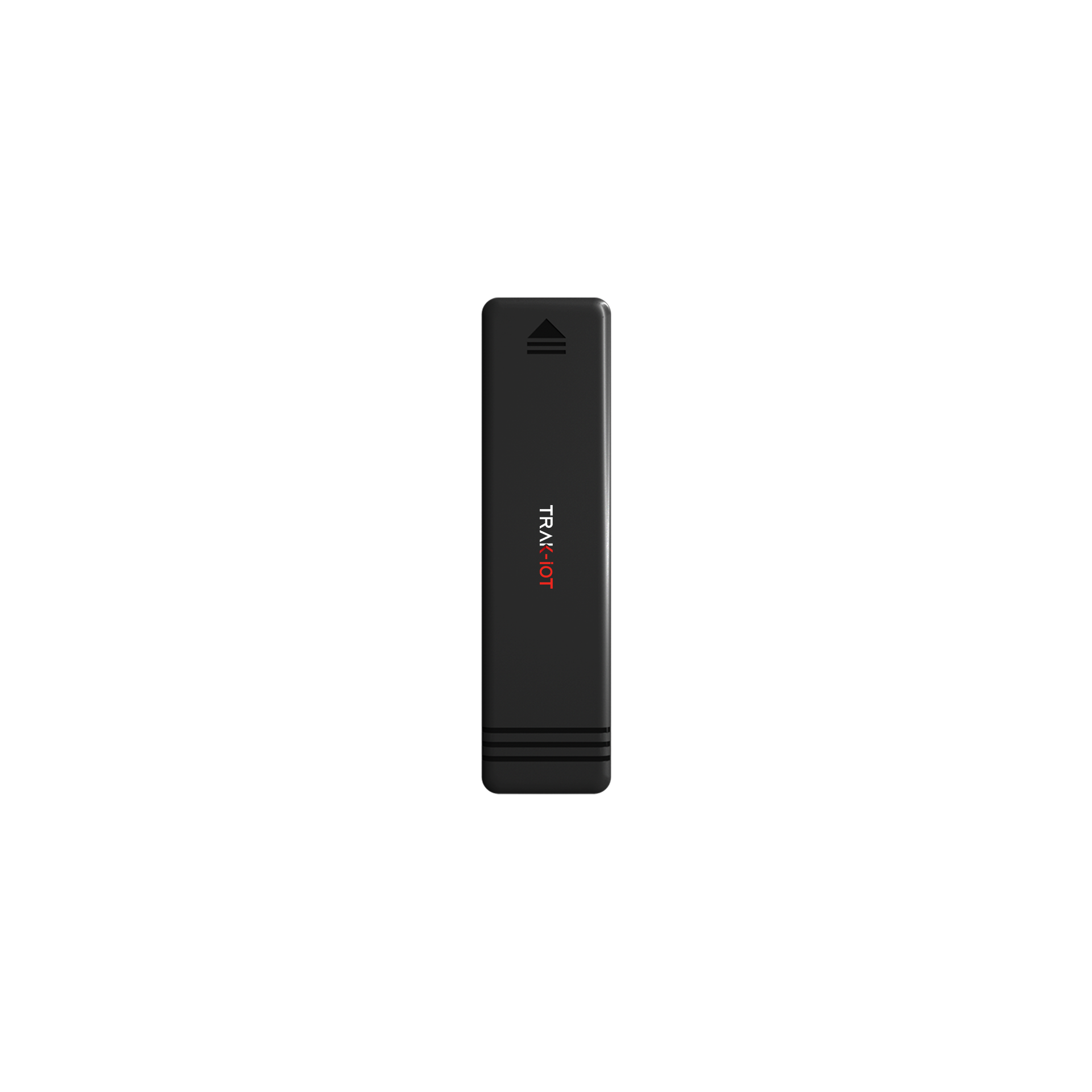

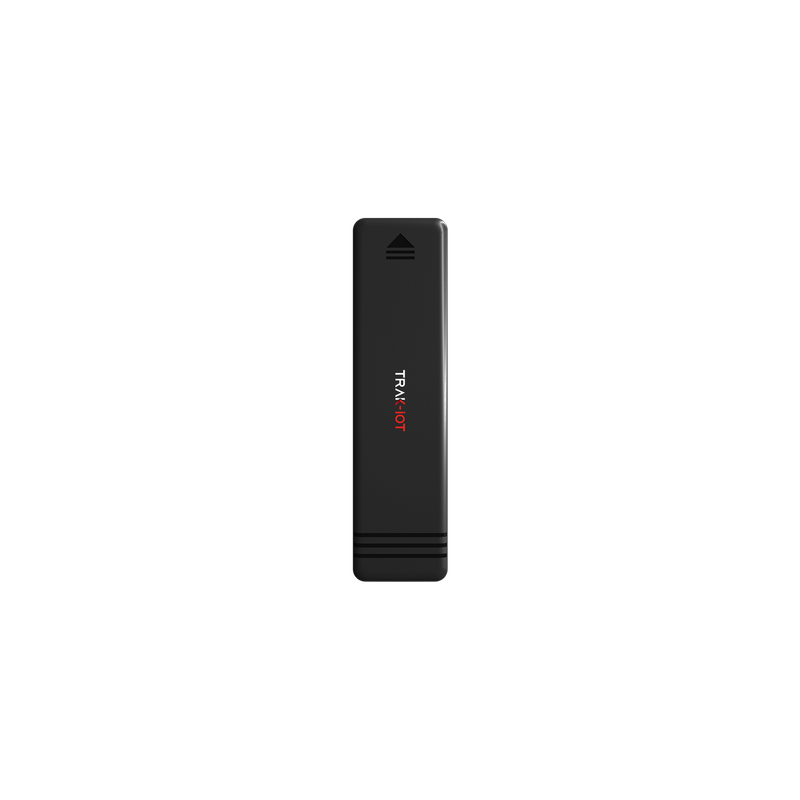

TC01CS001
CELLULAR NETWORK
Operating Band
GSM: 850/900/1800/1900MHz
Data Transmission
GPRS: 85.6kbps DL/85.6kbps UL(multi-slot class 12)
Cellular Antenna
Internal
POSITIONING
Constellation Support
GPS/GLONASS/BeiDou/Galileo
Sensitivity
-165dBm (Tracking)
-163dBm (Hot start)
-151dBm (Warm start)
-148dBm (Cold start)
Location Accuracy
<2.5m(CEP)
Standalone TTFF
31S (Cold start)
31S (Wam start)
＜1S (Hot)
GNSS Antenna
Internal
REALIABILITIES
Operating Temperature
-20℃ ～+70℃
Storage Temperature
-40℃ ～+85°C
Battery Storage Temperature
-40℃ ～+85°C
Operating Humidity
5% to 95% non-condensing
PHYSICAL
Dimensions
88mm*23mm*14mm
Weight
29g
Back-up Battery
Rechargeable 55mAh 3.7V Li-polymer
Operating Voltage
9-36 VDC with overvoltage protection
INTERFACES
Digital Input (Ignition)
1 digital input for ignition detection
Digital Output
1 digital output for relay control
Accelerometer
3-axis accelerometer
Status LEDs
2 (GPS, NET)
