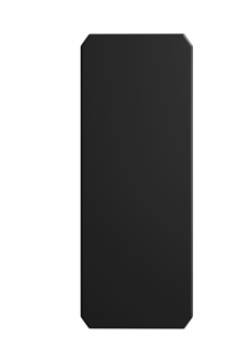

TC02 Wired Tracker
PRODUCT FEATURES
4G LTE CAT-1 Connectivity
Designed for IoT connectivity in Southeast Asian, African & European countries.
2G Network Fall-back
In case 4G connectivity is not available, it keeps communication continuing.
Built-in Battery
Allowing device keeps working once power supply is not available.
ACC Detection
Physically detect ignition status, for generate reliable data.
Internal Antennas
Both positioning & cellular Antennas are built on board.
Real-time Positioning
Employs three satellite system of BeiDou (China), GPS (USA) & GNASS (Russia).
Built-in Storage
Store data when cellular connection is out.
Driving Behaviour Detection
Collects data of driving performances for generate reliable reports of driving behaviour analysis.
Remote Engine Cut-off
Physically disable the vehicle engine from a distance away without a limitation.
Geo-fencing Setting & Alert
Support setting either on the hardware itself or remotely on a software.
OTA updates
This is basic way for features update, debug and parameters reset.
PRODUCT SPECIFICATIONS
Data Transmission
LTE FDD Rel.13: 10Mbps DL/5Mbps UL
LTE TDD Rel.13: 8.2Mbps DL/3.4Mbps UL
GPRS: 85.6kbps DL/85.6kbps UL(multi-slot class 12)
Cellular Antenna
Internal
POSITIONING
Constellation Support
GPS/GLONASS/BeiDou
Sensitivity
-162dBm (Tracking)
-160dBm(Reacquisition)
-148dBm (Cold start)
-156dBm (Hot start)
Location Accuracy
<2m(1σ)
Standalone TTFF
≤32S (Cold start)
≤1S (Hot start)
≤1S (Reacquisition)
GNSS Antenna
Internal
REALIABILITIES
Operating Temperature
-20℃ ～+70℃
Storage Temperature
-40℃ ～+85°C
Battery Storage Temperature
-40℃ ～+85°C
Operating Humidity
5% to 95% non-condensing
PHYSICAL
Dimensions
87(L)*34(W)*14(H)mm
Weight
42g
Back-up Battery
Rechargeable 55mAh 3.7V Li-polymer
Operating Voltage
9-36 VDC with overvoltage protection
INTERFACES
Digital Input (Ignition)
1 digital input for ignition detection
Digital Output
1 digital output for relay control
Accelerometer
3-axis accelerometer
Status LEDs
2 (GPS, NET)
